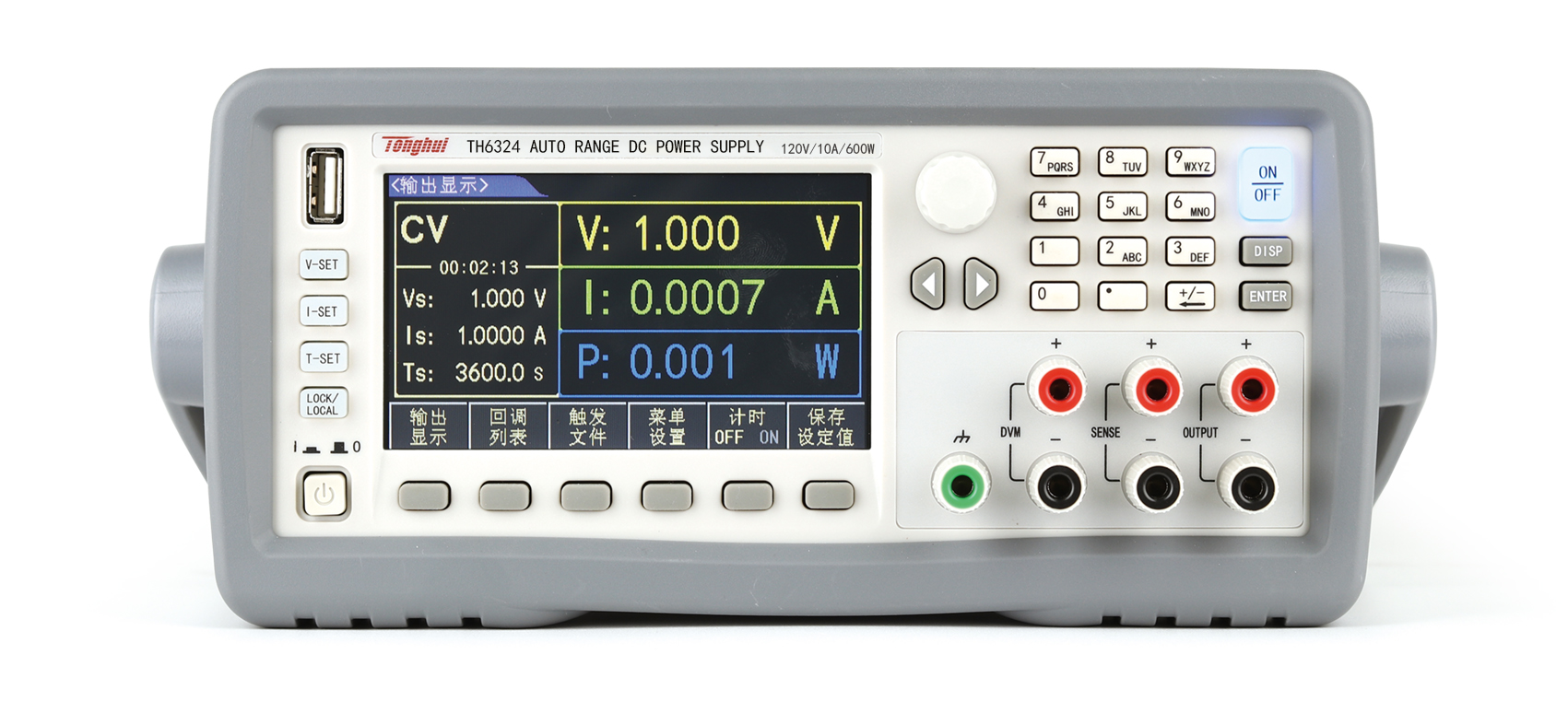

TH6301/TH6302/TH6303/TH6304/TH6312/TH6313/TH6314/TH6323/TH6324寬范圍可編程線性直流電源

• 技術參數

• 參數		TH6301	TH6302	TH6303	TH6304	TH6312	TH6313	TH6314	TH6323	TH6324
  額定輸出	電壓	20V	30V	60V	120V	30V	60V	120V	60V	120V
  	電流	30A	20A	10A	5A	30A	15A	6A	25A	10A
  	功率	200W	200W	200W	200W	360W	360W	360W	600W	600W
  負載調節率≤	電壓	0.01%+20mV	0.01%+20mV	≤0.01%+5mV	≤0.01%+5mV	0.01%+20mV	≤0.01%+8mV	≤0.01%+8mV	≤0.01%+15mV	0.01%+15mV
  	電流	0.01%+20mA	0.01%+ 15mA	≤0.01%+4mA	≤0.01%+4mA	0.01%+20mA	≤0.01%+6mA	≤0.01%+6mA	≤0.01%+10mA	0.01%+10mA
  電源調節率≤	電壓	0.01%+20mV	0.01%+ 20mV	≤0.01%+5mV	≤0.01%+5mV	0.01%+20mV	≤0.01%+8mV	≤0.01%+8mV	≤0.01%+15mV	0.01%+15mV
  	電流	0.01%+20mA	0.01%+ 15mA	≤0.01%+4mA	≤0.01%+4mA	0.01%+20mA	≤0.01%+6mA	≤0.01%+6mA	≤0.01%+10mA	0.01%+10mA
  設定值解析度	電壓	1mV	1mV	1mV	1mV(＜100V),10mV(＞100V)	1mV	1mV	1mV(＜100V),10mV(＞100V)	1mV	1mV(＜100V),10mV(＞100V)
  	電流	1mA	1mA	1mA	1mA	1mA	1mA	1mA	1mA	1mA
  回讀值解析度	電壓	1mV	1mV	1mV	1mV(＜100V),10mV(＞100V)	1mV	1mV	1mV(＜100V),10mV(＞100V)	1mV	1mV(＜100V),10mV(＞100V)
  	電流	1mA	1mA	1mA	1mA	1mA	1mA	1mA	1mA	1mA
  設定精度12月（25°C±5°C)≤	電壓	0.05%+10mV	0.05%+10mV	0.05%+10mV	0.05%+15mV	0.05%+10mV	0.05%+10mV	0.05%+15mV	0.05%+10mV	0.05%+15mV
  	電流	0.1%+30mA	0.1%+20mA	0.1%+10mA	0.1%+20mA	0.1%+30mA	0.1%+15mA	0.1%+20mA	0.1%+25mA	0.1%+25mA
  回讀精度12月（25°C±5°C)≤	電壓	0.05%+10mV	0.05%+10mV	0.05%+10mV	0.05%+15mV	0.05%+10mV	0.05%+10mV	0.05%+15mV	0.05%+10mV	0.05%+15mV
  	電流	0.1%+30mA	0.1%+20mA	0.1%+10mA	0.1%+20mA	0.1%+30mA	0.1%+15mA	0.1%+20mA	0.1%+25mA	0.1%+25mA
  紋波和噪聲(20Hz20MHz）≤	差模電壓	15mVpp	15mVpp	15mVp-p	20mVp-p	15mVpp	15mVp-p	20mVpp	20mVp-p	25mVp-p
  	差模電流	10mArms	10mArms	8mArms	10mArms	12mArms	10mArms	12mArms	13mArms	15mArms
  上升時間≤	10%-90%	100mS	100mS	150mS	150mS	100mS	150mS	150mS	150mS	150mS
  下降時間≤	90%-10%	2S	2S	2S	3.5S	2S	2S	3.5S	2S	3.5S
  存儲		10組觸發輸出，每組100個步驟，100組設定記憶

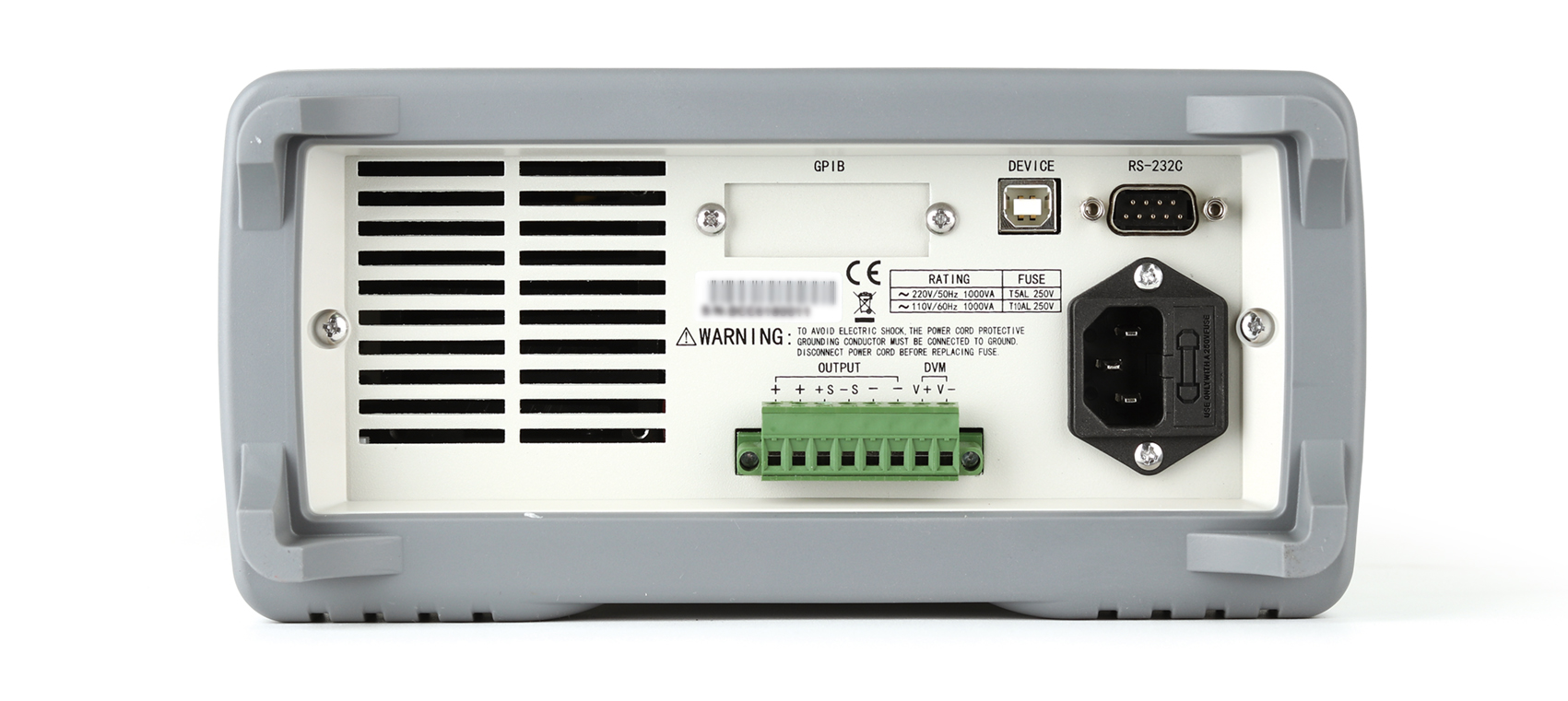

  輸出		支持前后面板輸出，前端端子最大輸出電流為10A
